155-6 Standard Module

IM155-6 PN ST Interface Module Integrated with 2 RJ45 ports

Model no

Article No

P7 155-6AA01-0BN0

Description

IM155-6 PN ST Interface Module Integrated with 2 RJ45 ports

Dimensions WxHxD（mm）

50 × 117 ×74

+86 13713990149

sales@huceen.com

Contact Now + Inquire

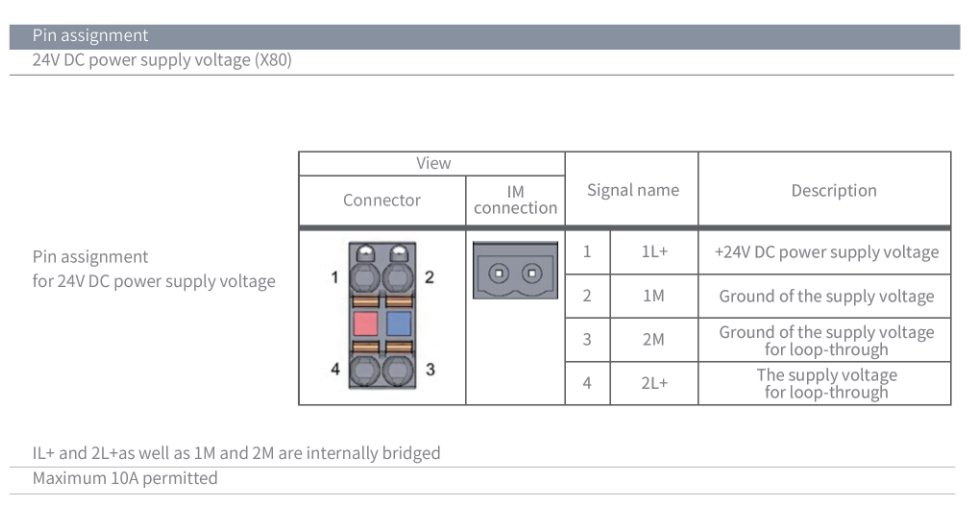

Product parameters Wiring diagram Relevant information

Specification parameters	Model no	155-6 Standard Module
	Article No	P7 155-6AA01-0BN0
	Product Description	IM155-6 PN ST Interface Module Integrated with 2 RJ45 ports

Standard
	Supply Voltage	Rated Value (DC):24 V Permissible Lower Limit (DC): 19.2 V Permissible Upper Limit (DC): 28.8 V
	Reverse Polarity Protection	√
	Power consumption, Typ	4.5 W
	Max Current Consumption	550 mA
	Max Power Consumption for Backplane Bus	4.5 W
	Number of PROFINET Ports	1;2 Ports (Switch)
	PROFINET Interface	2 X RJ45

Environmental Conditions
	.STEP 7 TIA Port, Configurable	V14
	.STEP 7 Configurable /Integrated	V5.5 SP4 and higher
	.STEP 7 Configuration Model	155-6AU01-0BN0
	PROFINET Version GSD or higher	v2.3 / -
	Number of Supported Modules	16
	Module Address Space	Max 256 bytes
	Station Address Space	Max 512 bytes
	Profisafe Fail-safe	\
PROFINET Standard
	RT：	Supported
	IRT:	\
	PROFINET Shared Devices	\
	Supports Fastest PN Bus Scanning Cycle	8ms
	Ring Redundancy(MRP)	Supported
	Diagnostic Functions	Supported
	Status Display	Supported
	Alarm	Supported
	Diagnostic Functions	Supported
	Interrupt	Supported
	Status Display: ·RUN LED ·ERROR LED ·MAINT LED .Power Supply Voltage Monitoring (PWR-LED) .LINK TX/RX Connection Display	Yes; Green LED Yes: Red LED Yes; Yellow LED Yes; Green PWR-LED Yes; 2 Green Link LEDs
	Operating Ambient Temperature	Horizontal Mounting, Min: -30°C Horizontal Mounting,Max: 60°C Vertical Mounting, Min: -30°C Vertical Mounting, Max: 50°C
	Max Installation Altitude	5 000 m
	Weight	147 g
	Dimensions W x H x D (mm)	50 × 117 ×74
