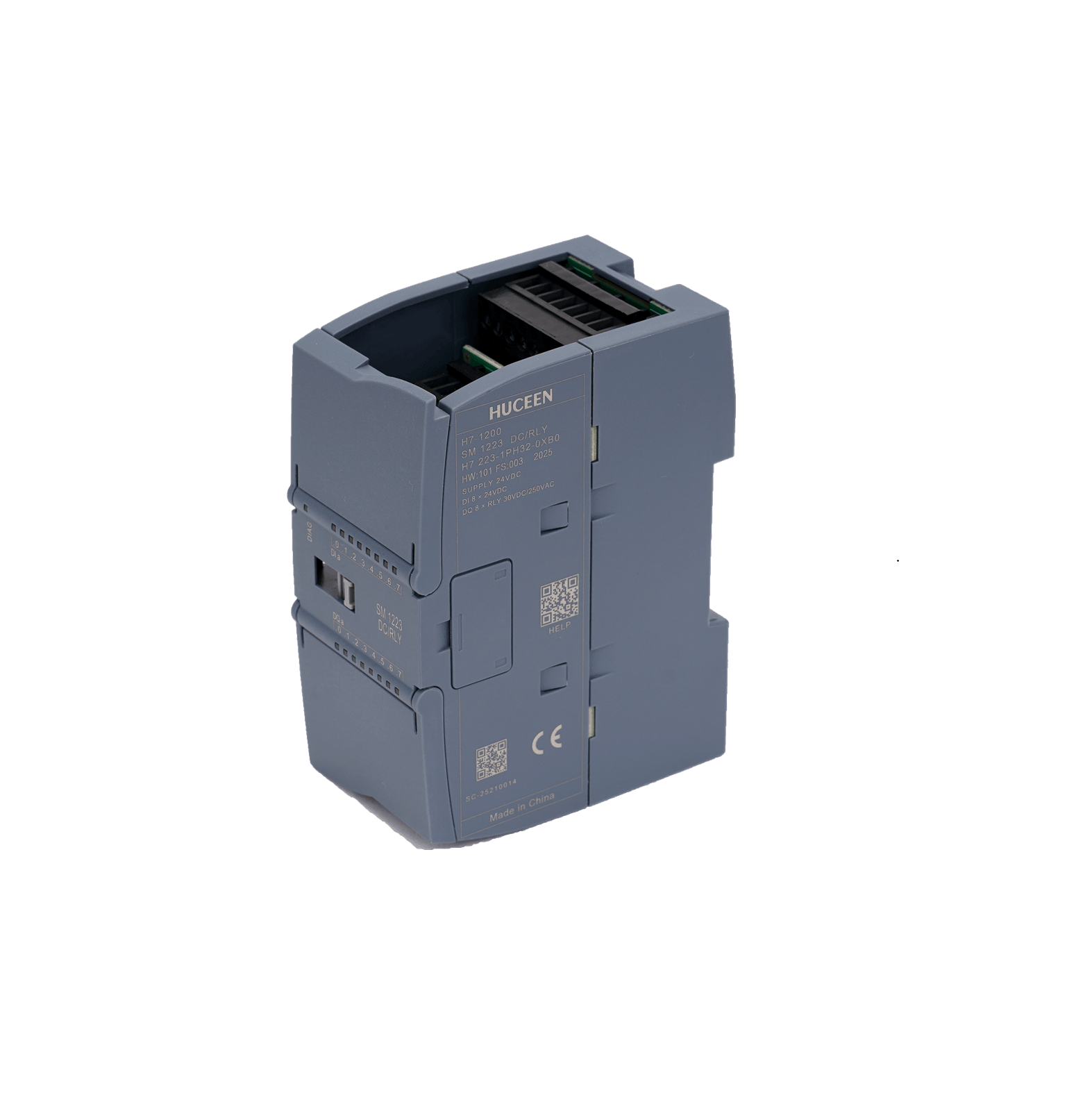

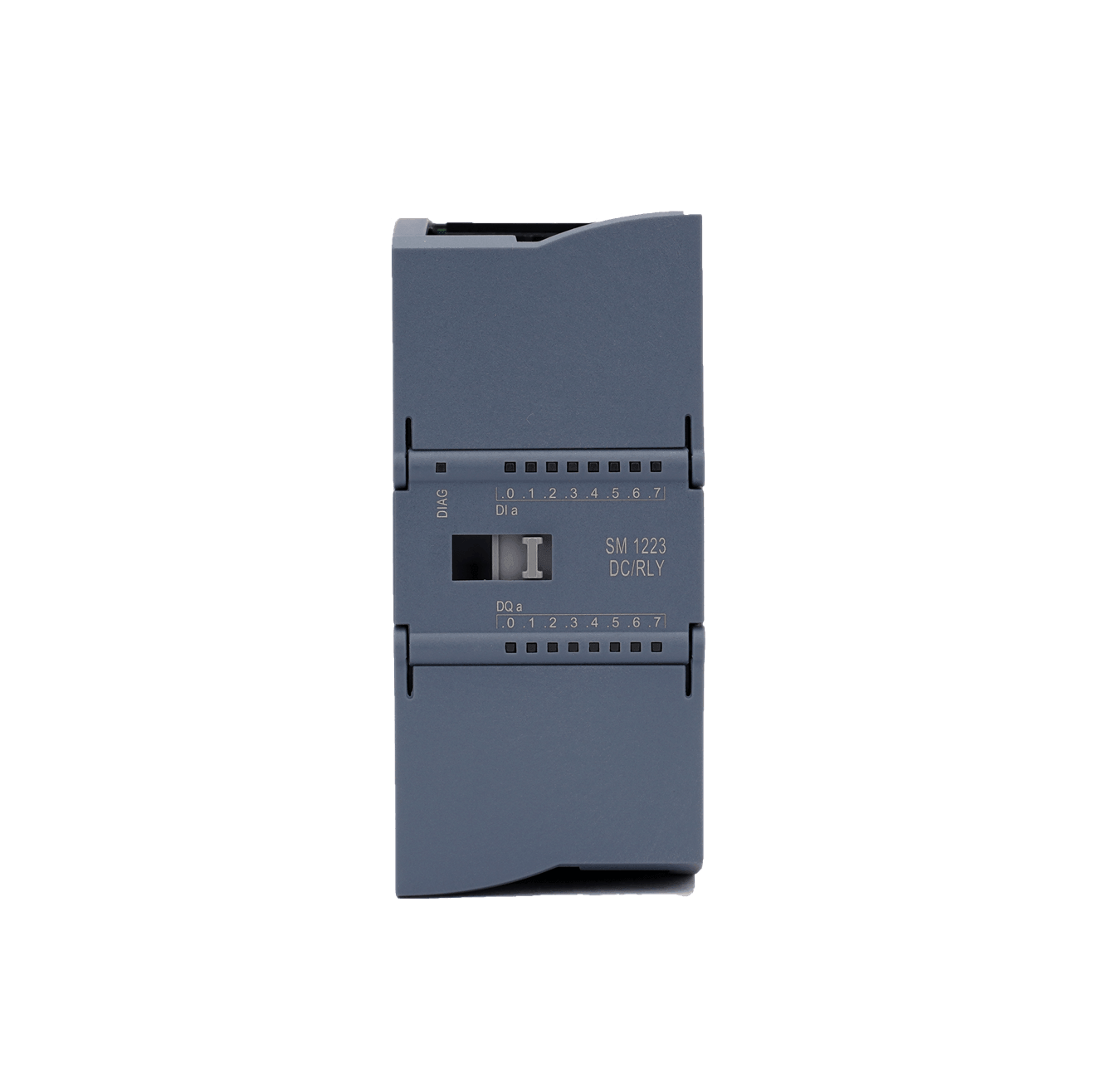

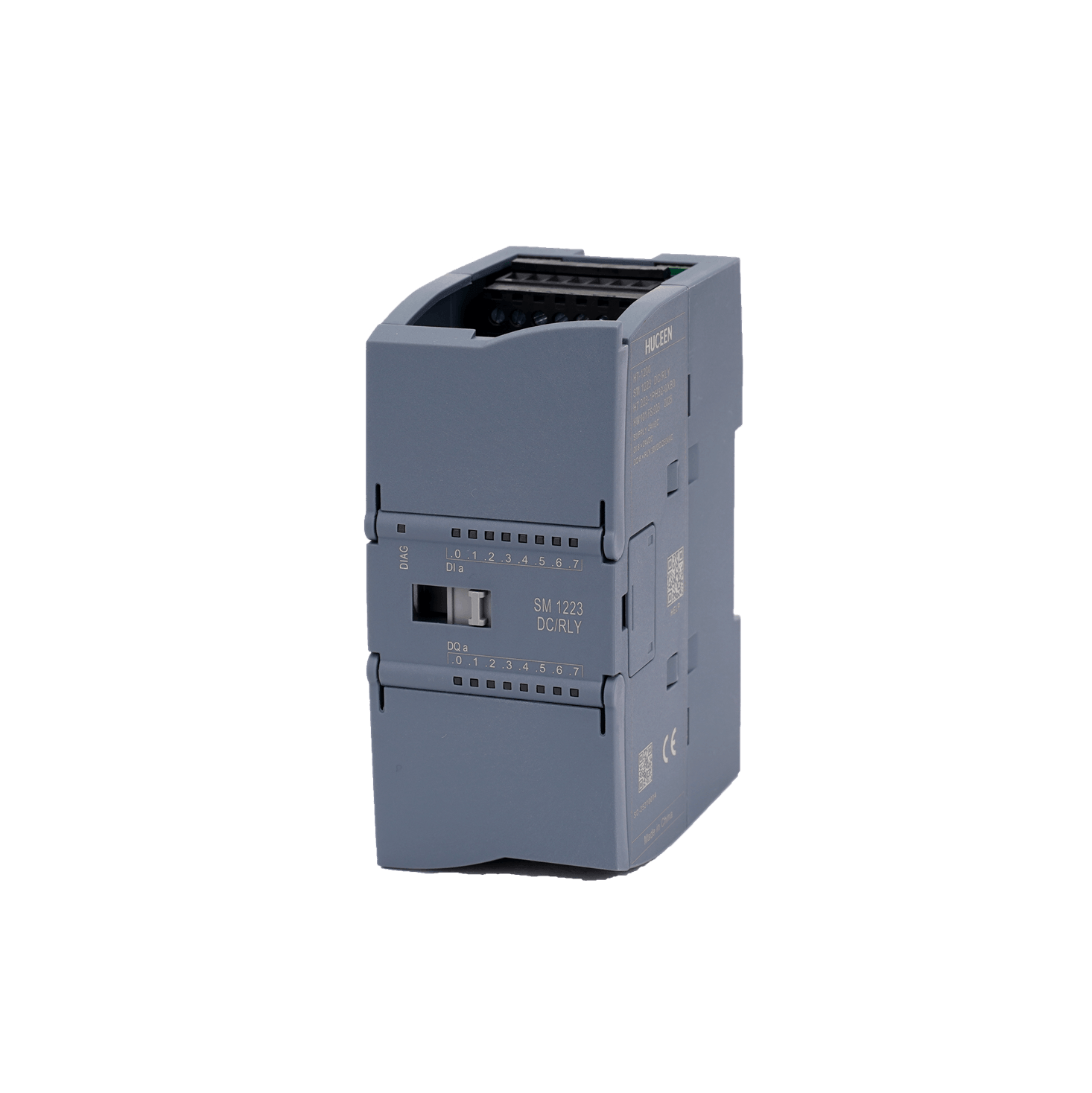

SM1223  DI8x24VDC &DQ8xRLY

Digital input &output module DI8 x 24VDC sinking/sourcing type & DQ8 x relay, relay output

Model no

SM1223 DI8x24VDC &DQ8xRLY

Article No

H7 223-1PH32-0XB0

Description

digital input &output module DI8 x 24VDC sinking/sourcing type & DQ8 x relay, relay output

WxHxD(mm)

45x100x75mm
Product parameters Wiring diagram Relevant information
Standard Model no SM1223  DI8x24VDC &DQ8xRLY

Article No

H7 223-1PH32-0XB0

Description

digital input &output module  DI8 x 24VDC sinking/sourcing type & DQ8 x relay, relay output

Conventional norm

Dimensions WxHxD(mm)

45×100×75mm

Power Consumption

5.5W

Available currentSM bus

145mA

Available currentSensor power 24V)

4mA for each input point used, each relay coil used is 11mA
Digital Input Number of Inputs 8
Input Type The sinking /sourcing type
Surge Voltage 35VDC, lasting 0.5s
Logic 1 Signal (Min) 15V DC at 2.5mA
Logic 0 Signal (Max) 5V DC at 1mA
Optical Isolation (field side and logic side) 500 V AC, lasting 1 min
Isolation Group 2
Filter Time 0.2, 0.4, 0.8, 1.6, 3.2, 6.4 and 12.8 ms(optional, 4 inputs form one group )
Digital Output Number of Outputs 8
Output Type Relay, dry contact
Voltage Range 5-30V DC or 5-250V AC
Logic 1 Signal at  Maximum Current -
Logic 0 Signal with 10KΩ Load -
Electric Current(Max) 2A
Lamp Load 30W DC/200W AC
Flood Leakage Current of Each Point -
Surge Current it is 7A when the contact is closed
Isolation (field side and logic side) 1500V AC, lasting 1 min(Coil and contact);
None(coil and logic side )
Isolation Group 2
Current of Each Public Terminal (Max) 10A
Switching Delay Up to 10ms
Mechanical Lifetime (non-responsible) 10,000,000 break/close cycles
Lifetime under Rated Load 100,000 break/close cycles
Behavior at RUN-STOP previous value or replacement value (default is 0)
