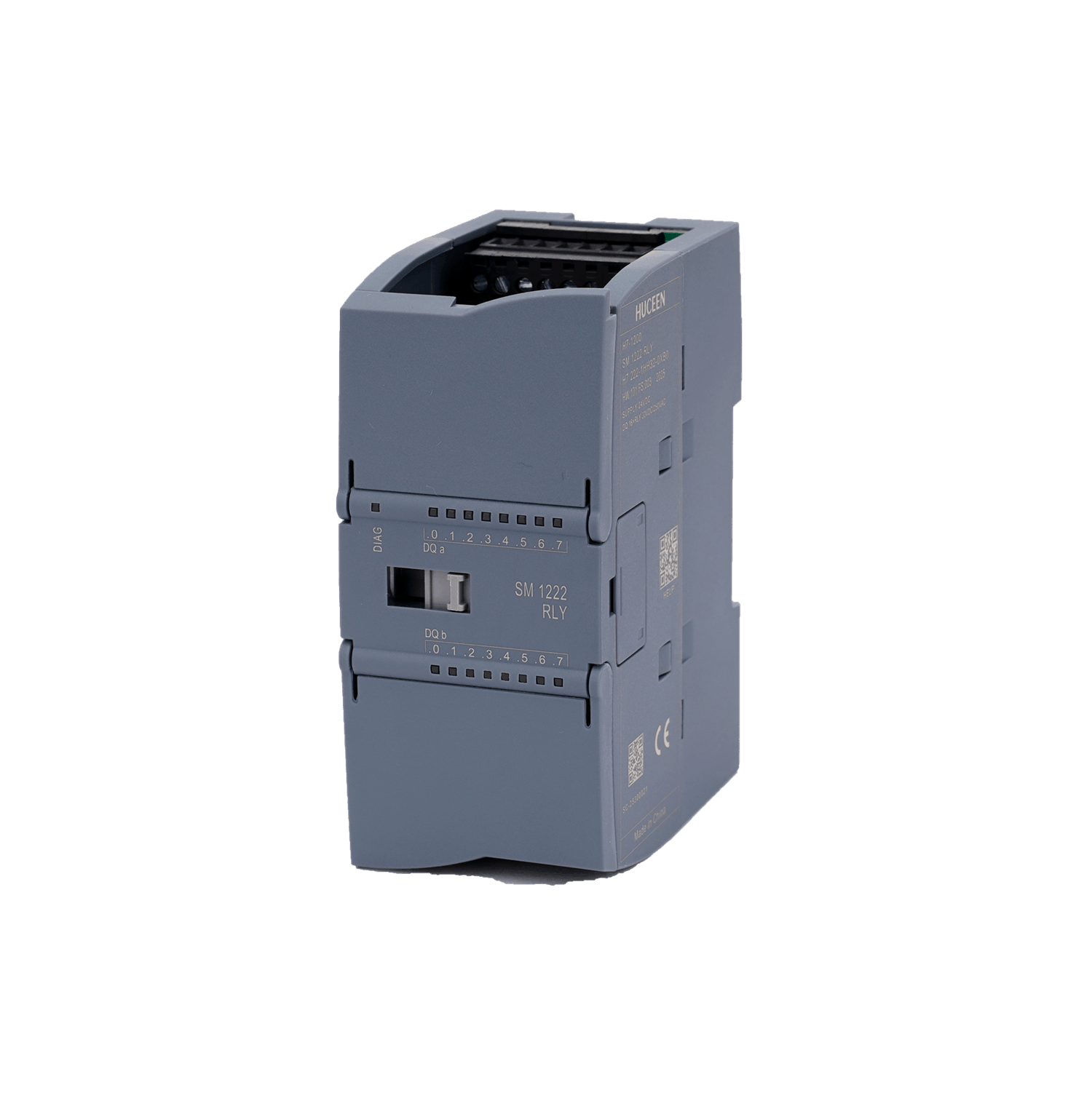

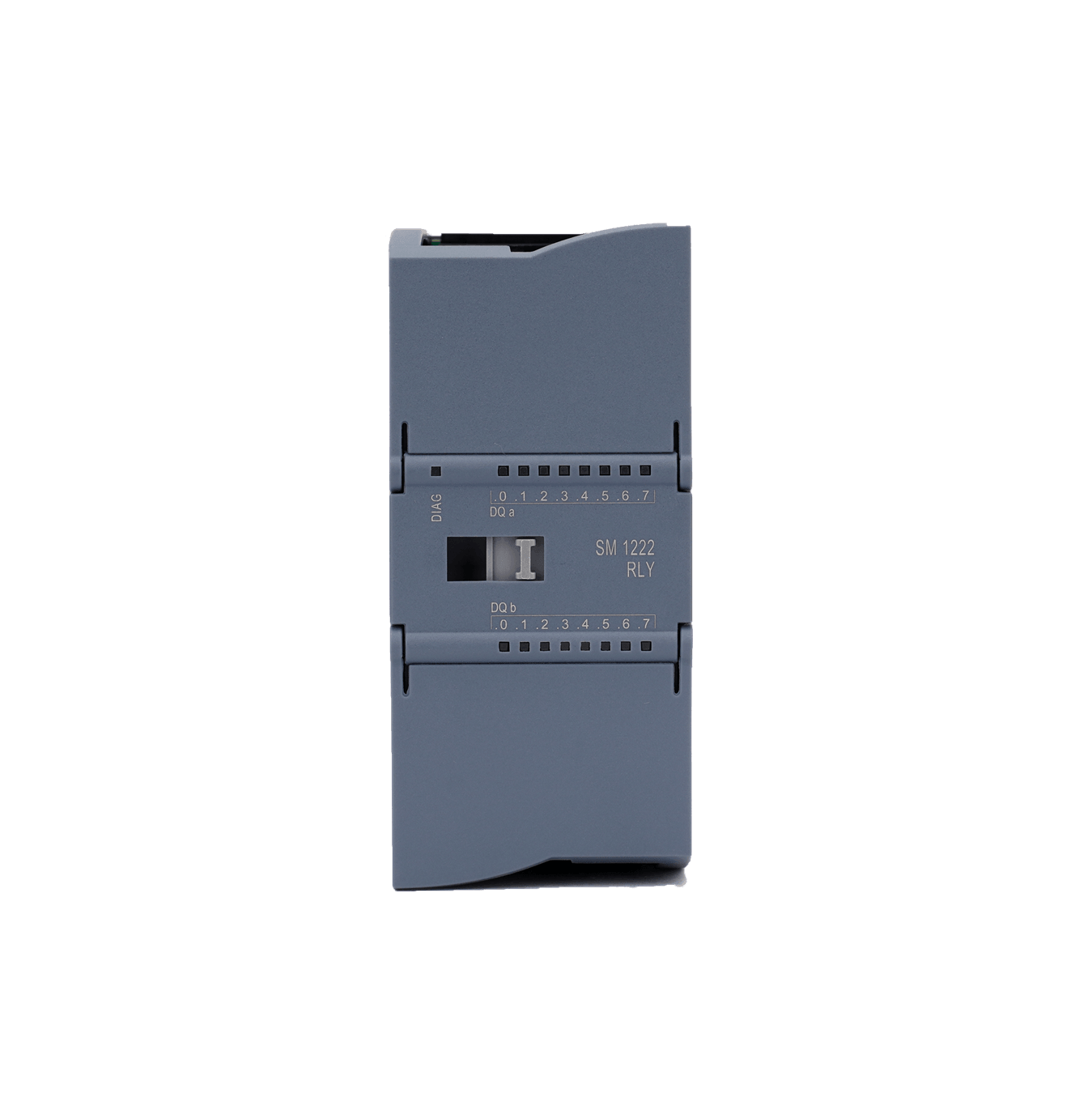

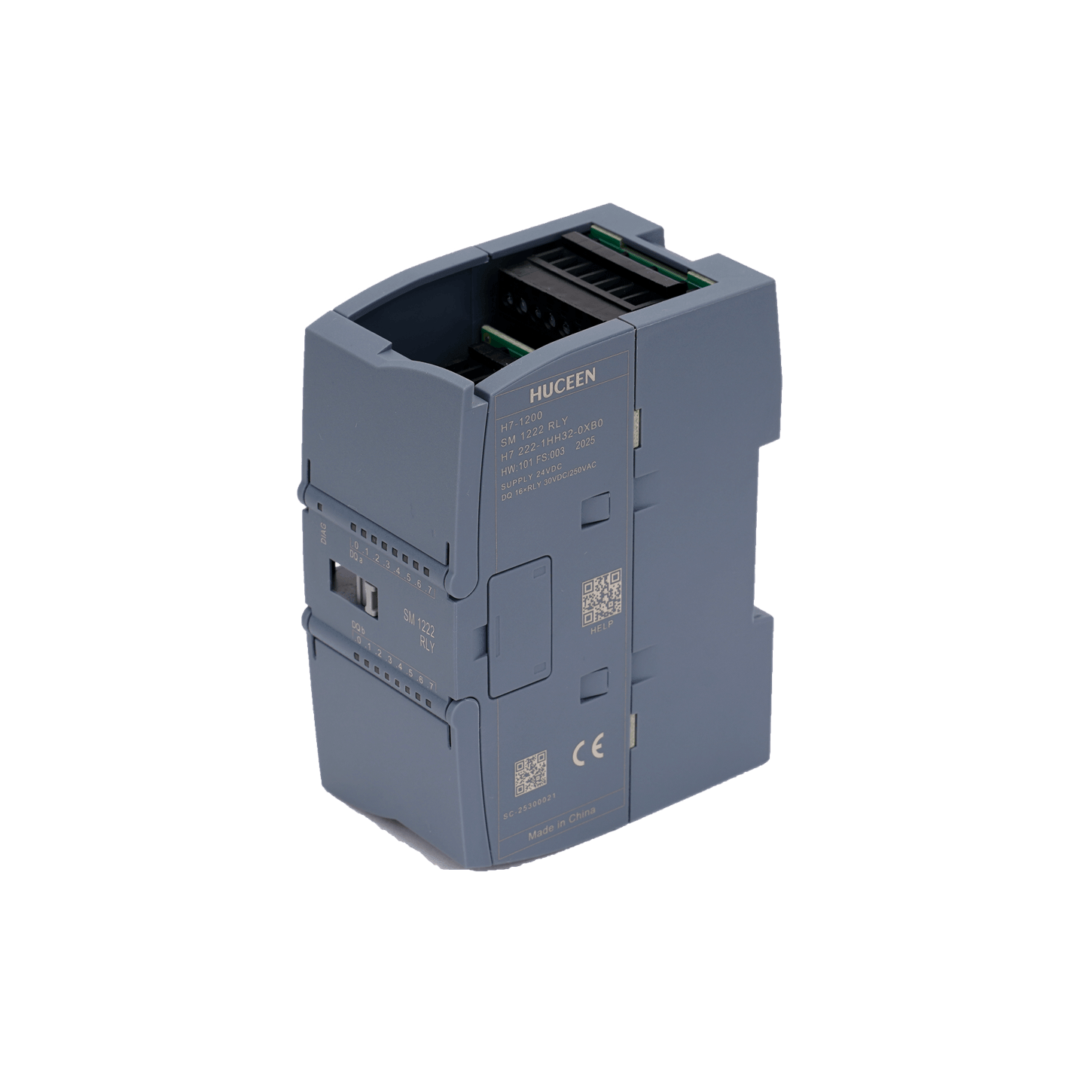

SM1222  DQ16xRLY

Digital output module DQ16 x Relay,Power Consumption:8.5W

Model no

SM1222 DQ16xRLY

Article No

H7 222-1HH32-0XB0

Description

digital output module DQ16 x Relay

WxHxD(mm)

45x100x75mm

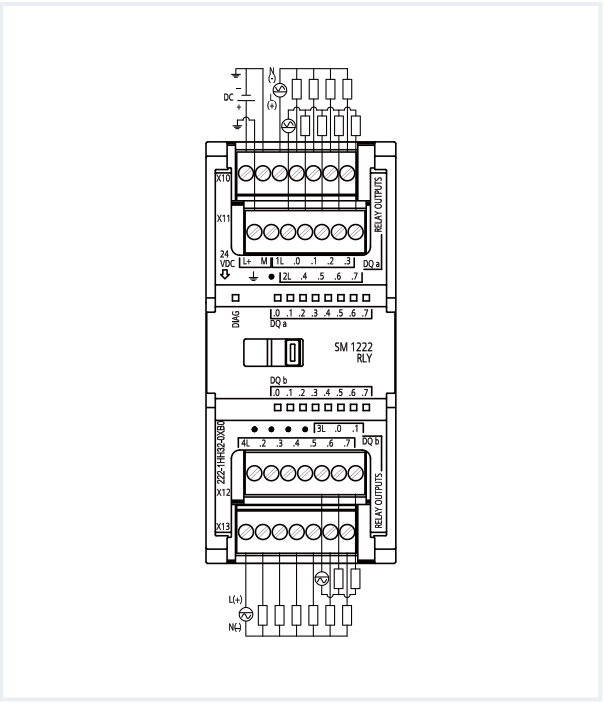

Product parameters Wiring diagram Relevant information
Standard Model no SM1222  DQ16xRLY

Article No

H7 222-1HH32-0XB0

Description

digital output module DQ16 x Relay

Conventional norm

Dimensions WxHxD(mm)

45×100×75mm

Power Consumption

8.5W

Available currentSM bus

135mA

Available currentSensor power 24V)

each relay coil used is 11mA
Digital output Number of Outputs 16
Output Type Relay, dry contact
Voltage Range 5-30V DC or 5-250V AC
Logic 1 Signal at  Maximum Current -
Logic 0 Signal with 10KΩ Load -
Electric Current(Max) 2A
Lamp Load 30W DC/200W AC
Flood Leakage Current of Each Point -
Surge Current it is 7A when the contact is closed
Isolation(field side and logic side) 1500V AC, lasting 1 min(Coil and contact);
None(coil and logic side )
Isolation Group 4
Current of Each Public Terminal (Max) 10A
Switching Delay Up to 10ms
Mechanical Lifetime (non-responsible) 10,000,000 break/close cycles
Lifetime under Rated Load 10,000,000 break/close cycles
Behavior at RUN-STOP previous value or replacement value (default is 0)
