EM DT32 Digital input/output module

Model no EM DT32 Article No H7 288-2DT32-0AA0 Description 16 point digital input/16 point digital output relay typeConventional normDimensions WxHxD(mm)72×100×81mmPower dissipatio10WAvailable current

Model no

EM DT32

Article No

H7 288-2DT32-0AA0

Description

16-digital input/ 16-digital output, relay

Dimensions WxHxD(mm)

72×100×81mm

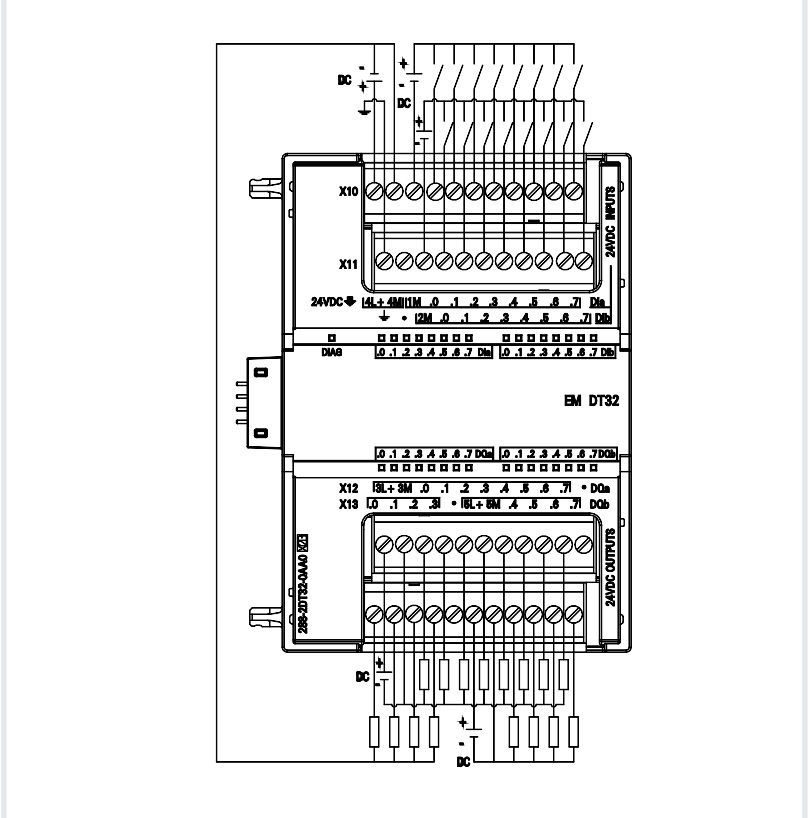

Product parameters Wiring diagram Relevant information
Specification parameters Model no

EM DT32

Article No H7 288-2DT32-0AA0
Description 16-digital input/ 16-digital output, transistor
Conventional norm

Dimensions WxHxD(mm)

72×100×81mm
Power Consumption 4.5W
Current Consumption(SM bus) 180mA
Current Consumption(24V DC) 4mA for each input point used

Digital input

Number of Inputs

16
Type PNP/NPN(IEC  type 1 sinking)
Surge voltage (Maximum) 35VDC,lasting  0.5s
Logic 1 signal (Minimum) 15VDC
Logic 0 signal (Maximum) 5VDC
Optical Isolation (field side and  logic side) 500 V AC,lasting  1 min
Isolation group 2
Filter time 0.2,0.4,0.8,1.6,3.2,6.4,12.8ms(optional, 4 inputs form one group)
Number of Inputs that connect at the same time 16
Cable length (meter) 500M(Shield),150M(Unshielded)
Digital output

Number of Outputs

16
Type Solid-MOSFET (source type)
Voltage range 20.4~28.8V DC
Surge voltage (Maximum) 8A, max. lasting 100ms
Rated current foreach point(Maximum) 0.75A
Switching Delay Up to 10ms
Optical Isolation(field side and logic side) 500V AC, lasting 1.0min
Isolation group 3
Output status in STOP mode Previous value or replacement value (default is 0)

Number of Inputs that connect at the same time 16
55° (horizontal) All
45° (vertical) All
Cable length (meter)

Shield

500M
Unshielded 150M
