EM AE04 Analog input module

4-channel analog input, resolution 12 bits, full channel support current/voltage input

Model no

EM AE04

Article No

E 288-3AE04-0AA1

Description

4-channel analog input, resolution 12 bits, full channel support current/voltage input

Dimensions WxHxD（mm）

47×100×81mm

+86 13713990149

sales@huceen.com

Contact Now + Inquire

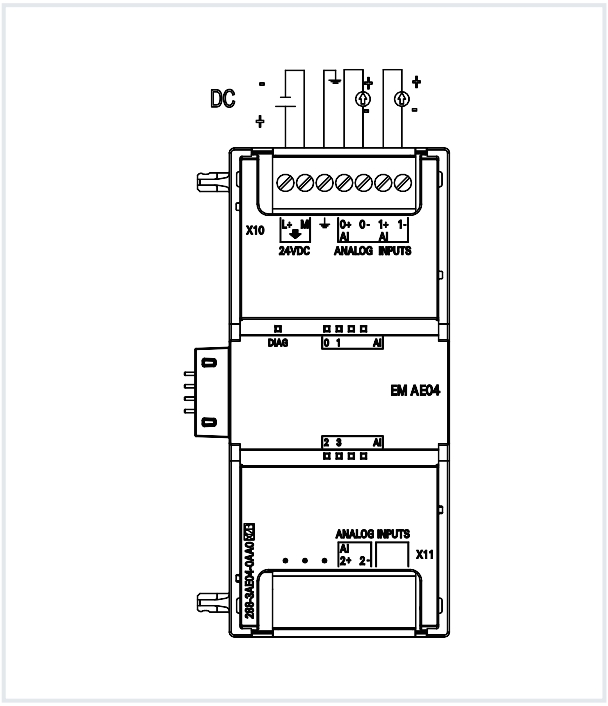

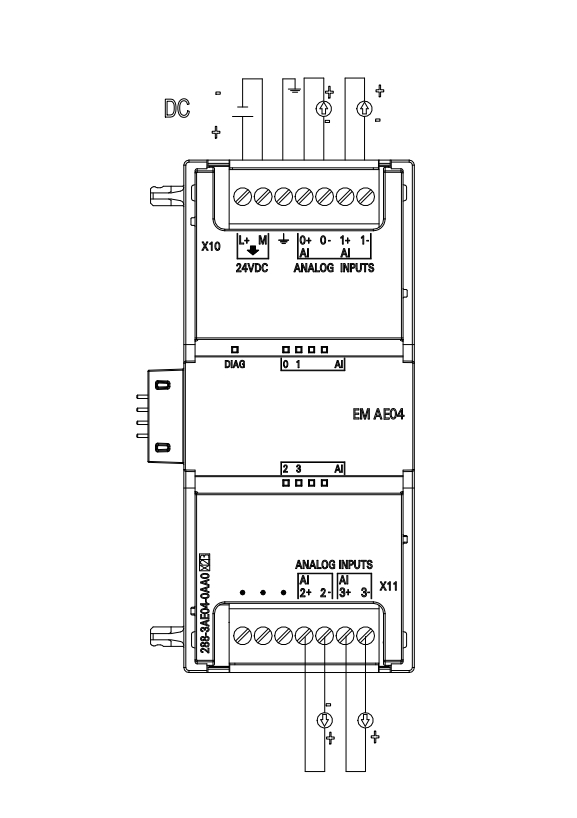

Product parameters Wiring diagram Relevant information

Specification parameters	Model no	EM AE04
	Article No	E 288-3AE04-0AA1
	Description	4-channel analog input, resolution 12 bits, full channel support current/voltage input

Analog Input	Number of Inputs	4
	Input Type	voltage or current (differential): 2 can be selected as a group range
	Input Range
	Electric Current	0~20mA
	Supply Voltage	±2.5V，±5V，±10V
	Data Word Format
	.Unipolarity	0~+27648
	.Bipolar	±27648
	Max. Voltage Resistance	±35V
	Max. Current Resistance	±40mA
	Smoothness	None, weak, medium or strong
	Noise Supression	400,60,50 or 10Hz
	Resolution
	Voltage Mode	12 bits + symbol bits
	Current Mode	12 bits
	Isolation (field side and logic side)	500V AC
	Precision（25℃/0~55℃）
	.Voltage Mode	full range ±0.1%/±0.2%
	.Current Mode	full range ±0.2%/±0.3%
	Analog to digital Conversion Time	625 µs（400Hz inhibited）
	Common mode Rejection	40dB, DC to 60HZ
	Working Signal Range	signal plus common mode voltage ≤12V
	Diagnosis	Overflow/ underflow, 24V DC low voltage
	Cable Length (M)	100m, shielded twisted pair
