EM AQ02 Analog output module

2-channel analog output, full-channel support current/voltage output

Model no

EM AQ02

Article No

E7 288-3AQ02-0AA1

Description

2-channel analog output, full-channel support current/voltage output

Dimensions WxHxD(mm)

47×100×81mm

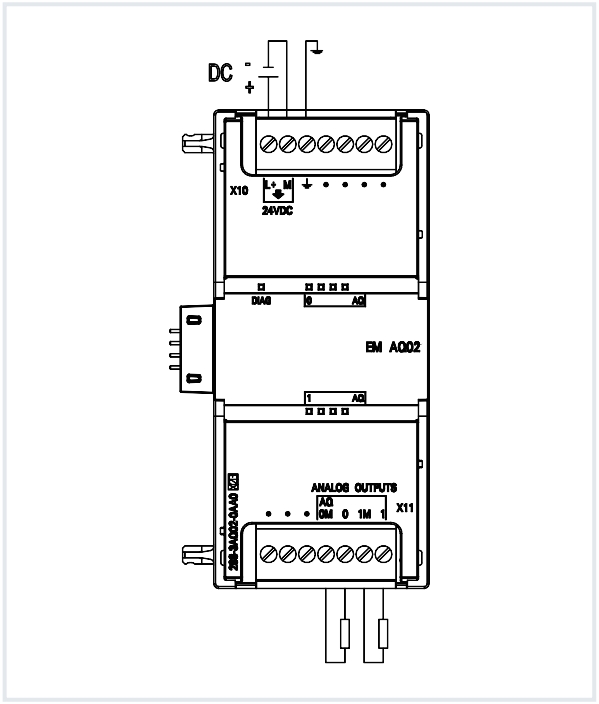

Product parameters Wiring diagram Relevant information
Specification parameters Model no

EM AQ02

Article No E7 288-3AQ02-0AA1
Description 2-channel analog output, full-channel support current/voltage output
Conventional norm

Dimensions WxHxD(mm)

47×100×81mm
Power Consumption 1.5W
Current Consumption(SM bus) 120mA
Current Consumption(24V DC) 50mA
Analog Output

Number of Outputs

2
Output Type voltage or current
Output Range -
 .Current Output 0-20mA
 .Voltage Output 0-10V
Data Word Format -
 .Current Output 27648
 .Voltage Output 0-27648
Resolution
Voltage Mode  11 bits
Current Mode   11 bits
Isolation (field side and logic side) 500V AC
Precision
.Typical, 25° full range  ±0.5%
.Worst, 0°to 55°  full range  ±1.0%
Output Status in STOP Mode previous value or replacement value (default is 0)
Diagnosis
.Voltage Mode Overflow/ underflow, 24V DC low voltage
.Current Mode Overflow/ underflow, 24V DC low voltage
Cable Length (M) 100m, shielded twisted pair
