Light-colored base

Model no

Light-colored base

Article No

P7 193‑6BP00‑0DA1

Description

Two channels per group/ New potential group/ With TC (Temperature Compensation) BU Type A1 – Light-colored model

+86 13713990149

sales@huceen.com

Contact Now + Inquire

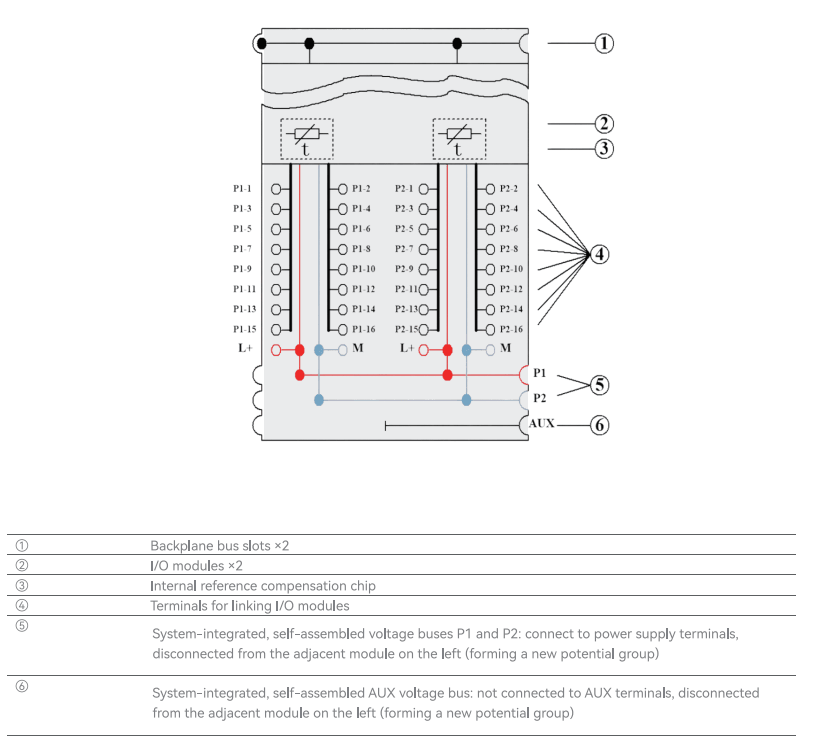

Product parameters Wiring diagram Relevant information

Specification parameters	Model	Light-colored base
	Article No	P7 193‑6BP00‑0DA1
	Description	Two channels per group/ New potential group/ With TC (Temperature Compensation) BU Type A1 – Light-colored model

Standard	Supply Voltage	Rated (DC): 24 V Internal Current Limitation Setting: 24 VDC / 10 A
	Reverse Polarity Protection	√
	Current Carrying Capacity
	For P1 and P2 bus, max	max. 10 A
	For process terminals, max	2 A
	Temperature Sensor	Supported
	Potential Grouping	Yes
	Continuation of Potential Group from Left Side	No
	Insulation Test	707 V DC（Test Type）
	Operating Ambient Temperature
	Horizontal Mounting, min	-30 °C
	Horizontal Mounting, max	60 °C
	Vertical Mounting, min	-30 °C
	Vertical Mounting, max	50 °C
	Maximum Installation Altitude	5000 m; limitations apply above 2000 m
	Terminals
	Type	Push-In
	Minimum Cross-Section	0.14 mm²; AWG 26
	Number of Process Terminals for Peripheral Modules	1.6 mm²; AWG 16
	Number of AUX Bus Terminals	16
	Number of Additional Terminals	0
	Maximum Cross-Section	0
	Number of Terminals Connecting P1 and P2 Bus	2
	Dimensions
	Width	30mm
	Height	117mm
	Depth	40mm
	Weight	80g (Approx)

Download
