IM 155 communication module

Based on PROFINET slave station interface module of Ethernet, can be expandable to 16 E-series smart modules

Model no

IM 155

Article No

E 288-4PN01-0AA1

Description

Based on PROFINET slave station interface module of Ethernet

Dimensions WxHxD（mm）

47×100×81mm

+86 13713990149

sales@huceen.com

Contact Now + Inquire

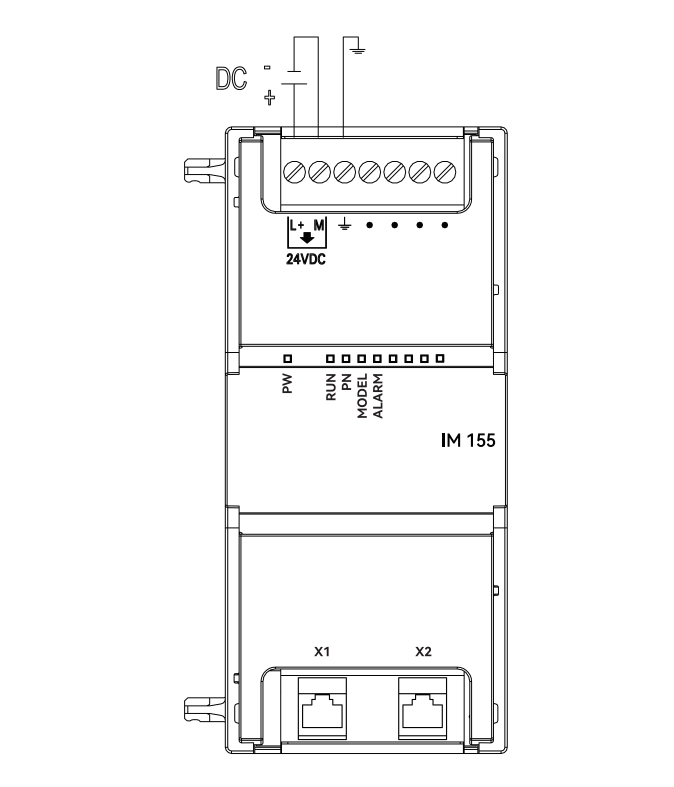

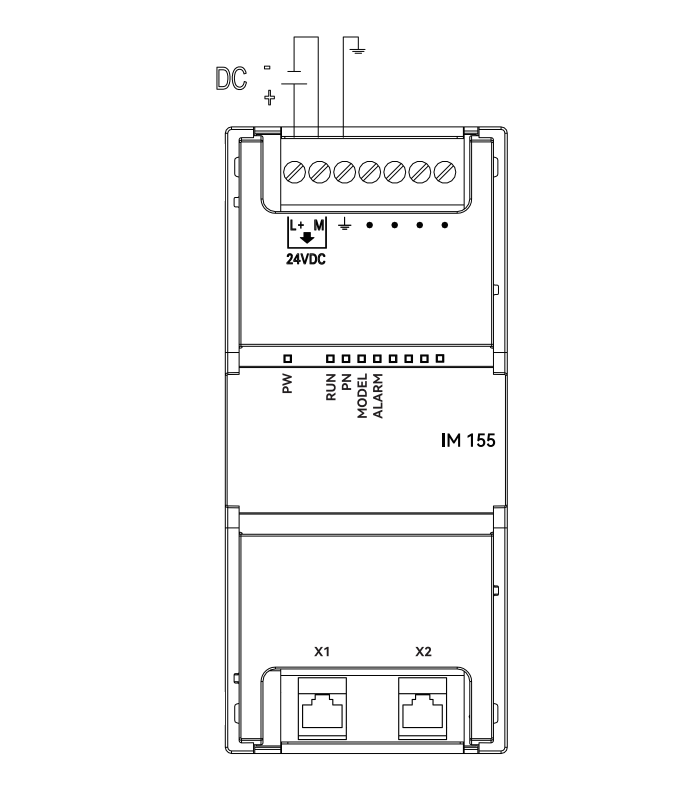

Product parameters Wiring diagram Relevant information

Specification parameters	Model no	IM 155
	Article No	E 288-4PN01-0AA1
	Description	Based on PROFINET slave station interface module of Ethernet, can be expandable to 16 smart family modules

PROFINET Communication Parameters	Communication Ports	2 RJ45 ports
	Electrical Type	RJ45 (Not support polarity adaptation)
	Transmission Rate	100 Mbps, full duplex
	Supported Ethernet Service	ping arp Network Diagnosis (SNMP) /MIB-2 LLDP
	Minimum Cycle Time	5ms
	Third-party PROFINET Master Station	Support
	The communication distance between slave station is the longest	100m (100BASE-TX)
	Topological Structure	Support star, tree, line and ring topology structure

Hardware Configuration Function	Importing File Type	PROFINET GSD file, XML format
	Expansion Capability	Support 16 E Smart Modules Expansion Expansion module can add digital module, analog module and temperature module

Isolation and Protection	Interface Isolation	transformer isolation of RJ45 communication port
	Power Supply Protection	The power supply terminal provides reverse connection protection and surge absorption function.

Function Introduction	Overview	IM155 communication interface module is distributed I/O module developed by Huceen Automation for system integrated customers; It has high-speed Ethernet communication, support Profinet slave station communication protocol, and can be mounted under Profinet master station equipment; Meanwhile, a single module can be expanded to 16 modules such as Huceen E series smart modules.
	Product Features	1. High-speed Ethernet communication; 2. Support Profinet master &slave station communication protocol; 3. Flexible application and can expand smart family module.
