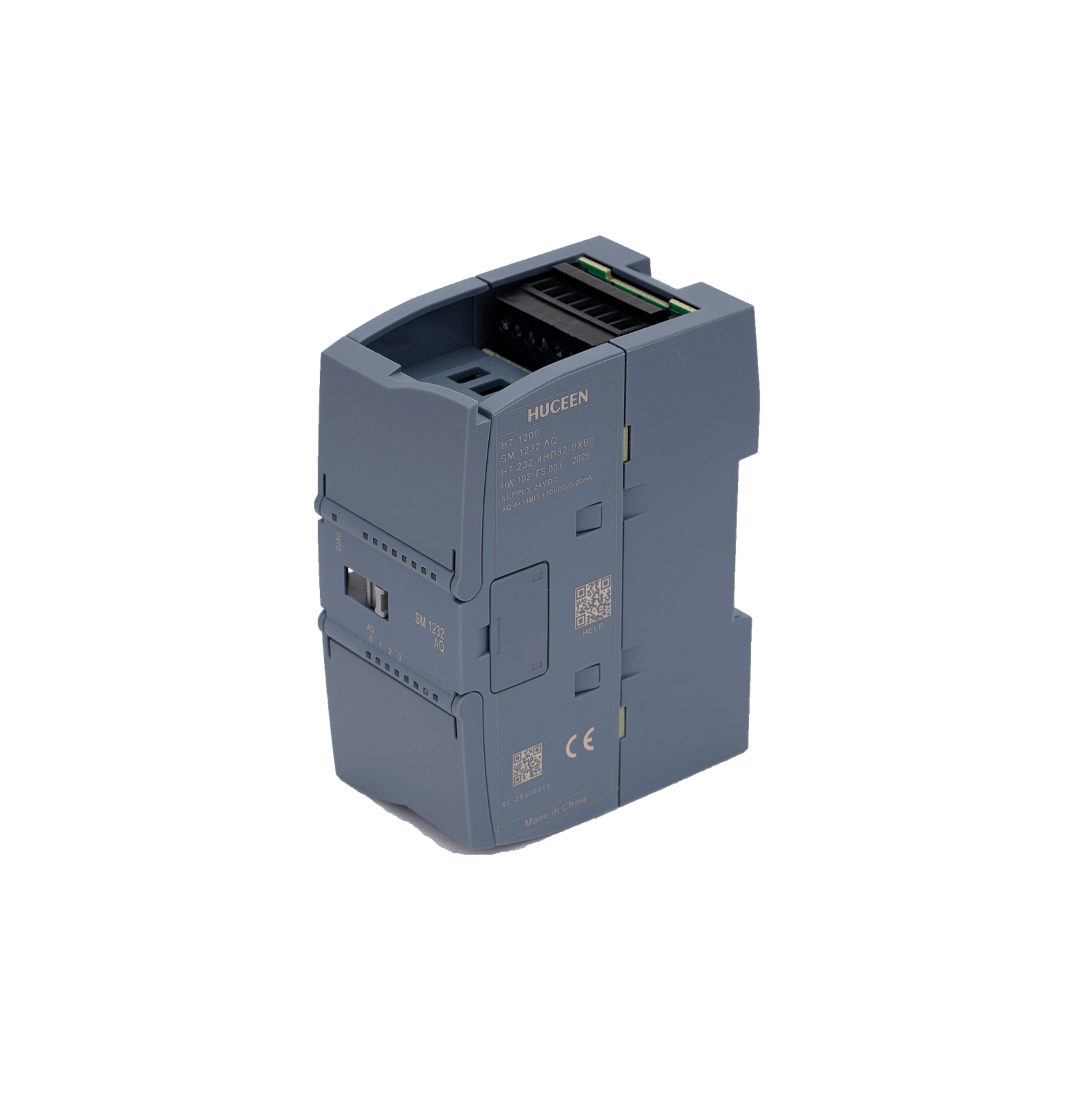

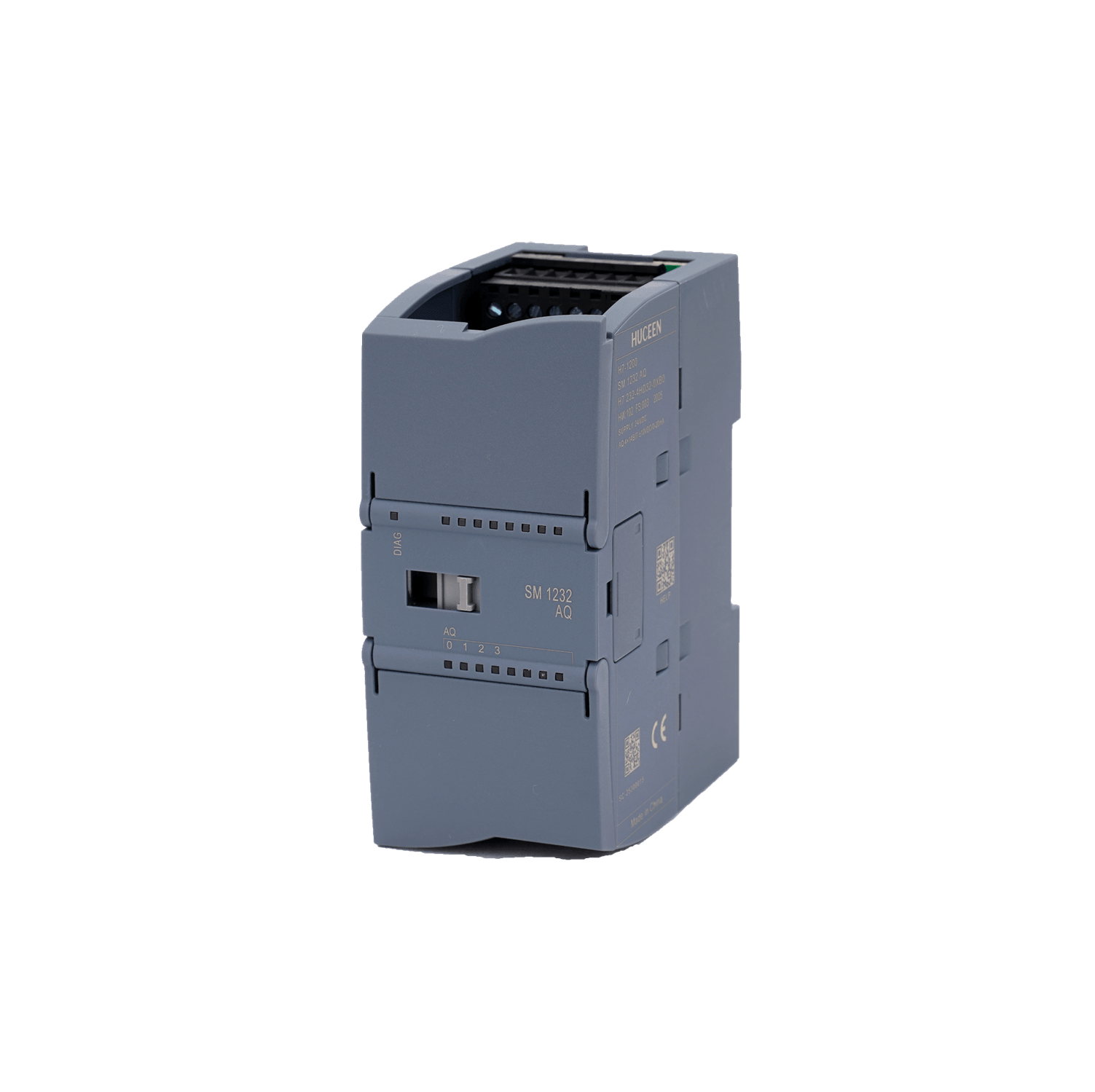

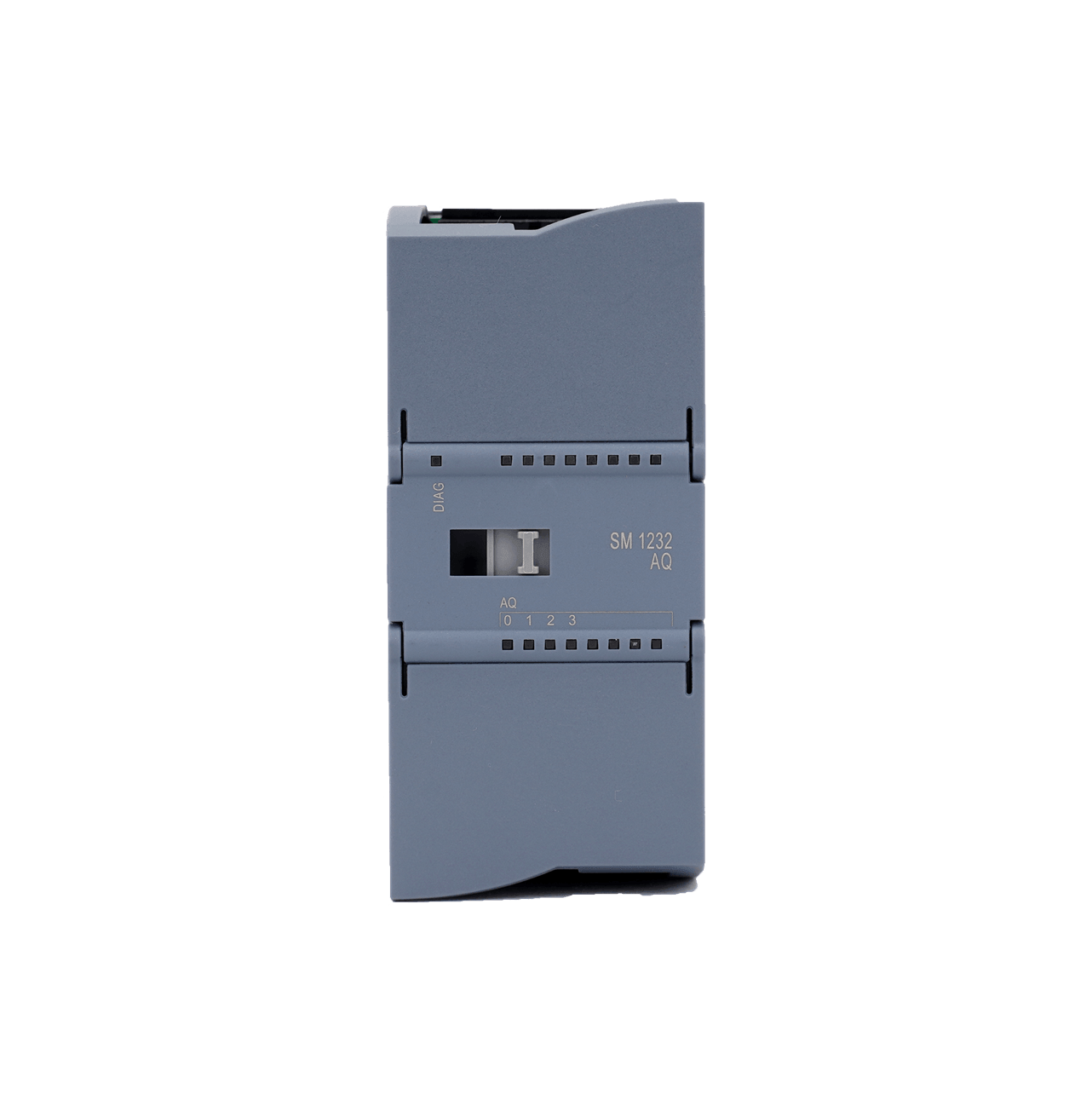

SM1232  AQ4 x 14 Bits

Analog output module AQ4 x 14 bits,Max. Voltage Resistance ±60V

Model no

SM1232 AQ4 x 14 Bits

Article No

H7 232-4HD32-0XB0

Description

Analog output module AQ4 x 14 bits

Dimensions WxHxD(mm)

45x100x75mm

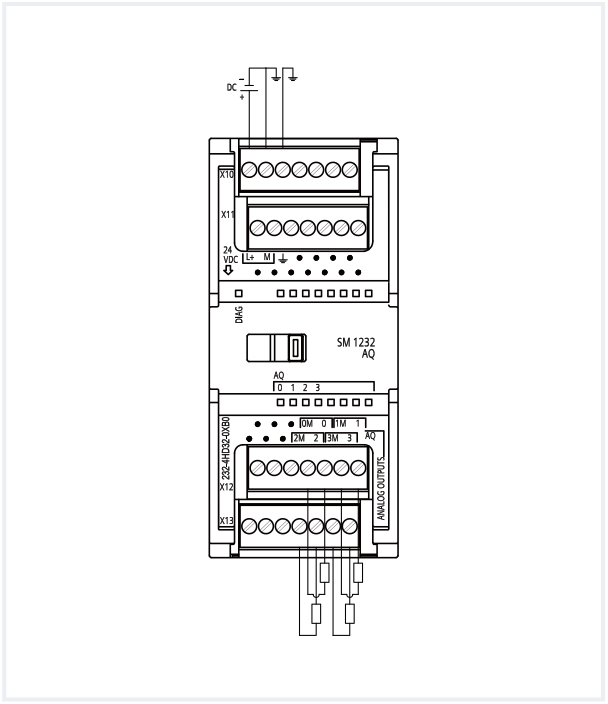

Product parameters Wiring diagram Relevant information
Specification parameters Model no

SM1232  AQ4 x 14 Bits

Article No H7 232-4HD32-0XB0
Description analog output module AQ4 x 14 bits
Conventional norm

Dimensions WxHxD(mm)

45x100x75mm
Power Consumption 1.5W
Current Consumption(SM bus) 80mA
Current Consumption(24V DC) 45mA(no load)
Analog output Number of Outputs 4
Output Type Voltage or current
Output Range
  Current Output 0-20mA or 4-20mA
  Voltage Output ±10V
Data Word Format
  Voltage -27648—27648
  Current 0-27648
Resolution
  Voltage Mode 14 bits
  Current Mode 13 bits
Max. Voltage Resistance ±60V
Isolation (field side and logic side) 500VAC
Precision(25℃/0-55℃) full range ±0.3% /±0.6%
Stability Time Voltage: 300μS(R), 750μS(1 uF); Current: 600μS(1 mH), 2 ms(10 mH)
Load Impedance Voltage: ≥ 1000 Ω; Current: ≤ 600 Ω
Output Status in STOP Mode previous value or replacement value (default is 0)
Diagnosis
Overflow/underflow Support
Voltage Mode: short circuit to ground Support
Current Mode: Circuit break mode Support
