SM1223  DI16x24VDC &DQ16x24VDC

Digital input &output module DI16 x 24VDC sinking /sourcing type & DQ16 x 24VDC, Transistor output

Model no

SM1223 DI16x24VDC &DQ16x24VDC

Article No

H7 223-1BL32-0XB0

Description

digital input &output module DI16 x 24VDC sinking /sourcing type & DQ16 x 24VDC, Transistor output

WxHxD(mm)

70x100x75mm

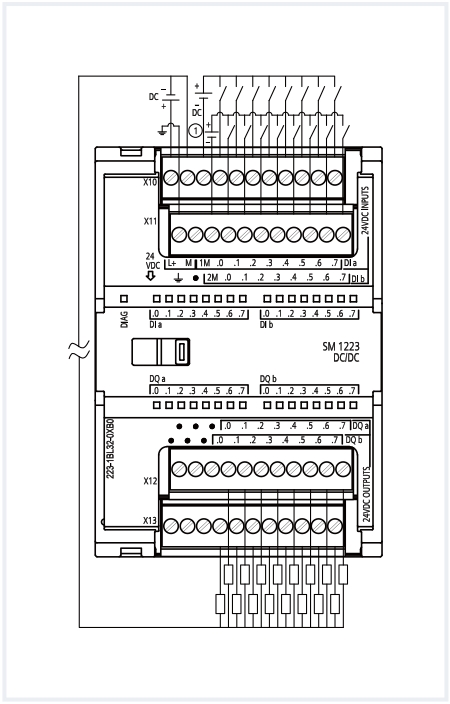

Product parameters Wiring diagram Relevant information
Standard Model no SM1223  DI16x24VDC &DQ16x24VDC

Article No

H7 223-1BL32-0XB0

Description

digital input &output module DI16 x 24VDC sinking /sourcing type & DQ16 x 24VDC, Transistor output

Conventional norm

Dimensions WxHxD(mm)

70×100×75mm

Power Consumption

4.5W

Available currentSM bus

185mA

Available currentSensor power 24V)

4mA for each input point used
Digital Input Number of Inputs 16
Input Type The sinking /sourcing type
Surge Voltage 35VDC, lasting 0.5s
Logic 1 Signal (Min) 15V DC at 2.5mA
Logic 0 Signal (Max) 5V DC at 1mA
Optical Isolation (field side and logic side) 500 V AC, lasting 1 min
Isolation Group 2
Filter Time 0.2, 0.4, 0.8, 1.6, 3.2, 6.4 and 12.8 ms(optional, 4 inputs form one group )
Digital Output Number of Outputs 16
Output Type Solid-MOSFET (source type)
Voltage Range 20.4 - 28.8V DC
Logic 1 Signal at  Maximum Current min 20V DC
Logic 0 Signal with 10KΩ Load max 0.1V DC
Electric Current(Max) 0.5A
Lamp Load 5W
Flood Leakage Current of Each Point max 10μA
Surge Current 8A, max. lasting 100ms
Isolation (field side and logic side) 500V AC, lasting 1 min
Isolation Group 1
Current of Each Public Terminal (Max) 8A
Switching Delay from the disconnection to connection(Max): 50µs;
from the connection to disconnection(Max): 200µs
Mechanical Lifetime (non-responsible) -
Lifetime under Rated Load -
Behavior at RUN-STOP previous value or replacement value (default is 0)
